SWA 18JE-P

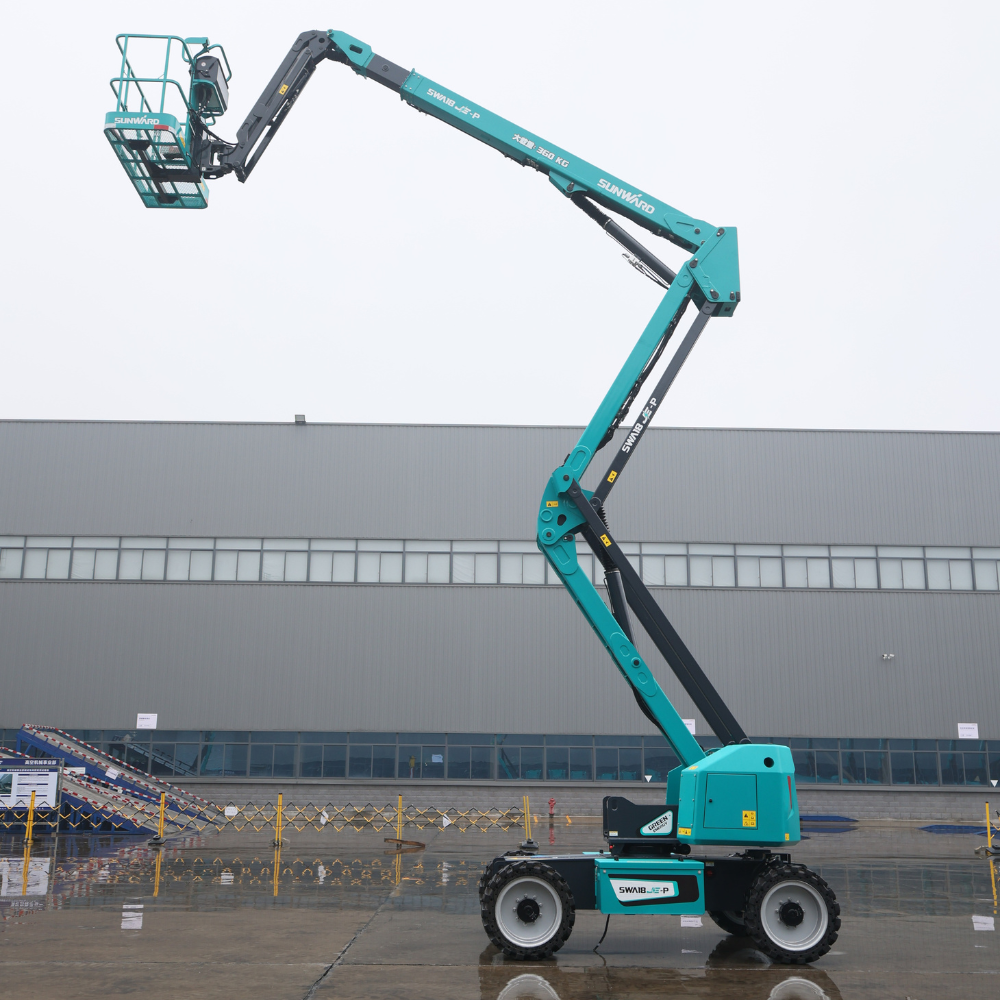

SWA 18JE-P - Image 2

SUNWARD SWA 18JE-P

The SWA 18JE-P is Sunward's electric articulated boom lift, designed to deliver maximum performance, safety, and sustainability on elevated worksites.

With an impressive 18-meter working height, 9.6-meter working radius, and zero tail swing, this lift offers superior maneuverability and precision—perfect for urban construction, maintenance, and industrial applications.

Powered by a high-capacity lithium battery and equipped with intelligent safety features, it sets a new standard for eco-friendly, high-efficiency aerial work platforms.

Discover all the other advantages of the Sunward SWA 18JE-P.

Max. platform height 16 m
Max. working height 18 m
Max.horizontal reach 9 m
Max.up&overclearance 7.8 m

Length – stored 7.5 m
Height – stored 2.24 m
Overall width 2.3 m
Ground clearance – middle 0.37 m
Length of working platform 1.83 m

Platform rotation 180°
Max. traveling speed – stowed 5.8 km/h
Max. traveling speed – elevated 0.8 km/h
Turningradius(inside/outside) 2.06 m / 4.74 m
Max. gradeability (counterweight upwards) 40%
Max. allowable working angle 5°

Comming Soon

Comming Soon

Comming Soon

Max. working height

18 m
Max. working radius

9.6 m
Rated load

260/360 kg
Overall weight

8 270 kg

SWA 18JE-P

The SWA 18JE-P is Sunward's advanced electric articulated boom lift, designed for high performance, safety, and sustainability. It offers excellent maneuverability and precision, making it ideal for urban construction, maintenance, and industrial use. Equipped with intelligent safety features, it's a reliable and eco-friendly choice for working at height.

Max. working height: 18 m
Max. working radius: 8 270 kg
Rated load: 260/360 kg
Overall weight: 8 270 kg
