SUNWARD SWDM 08F

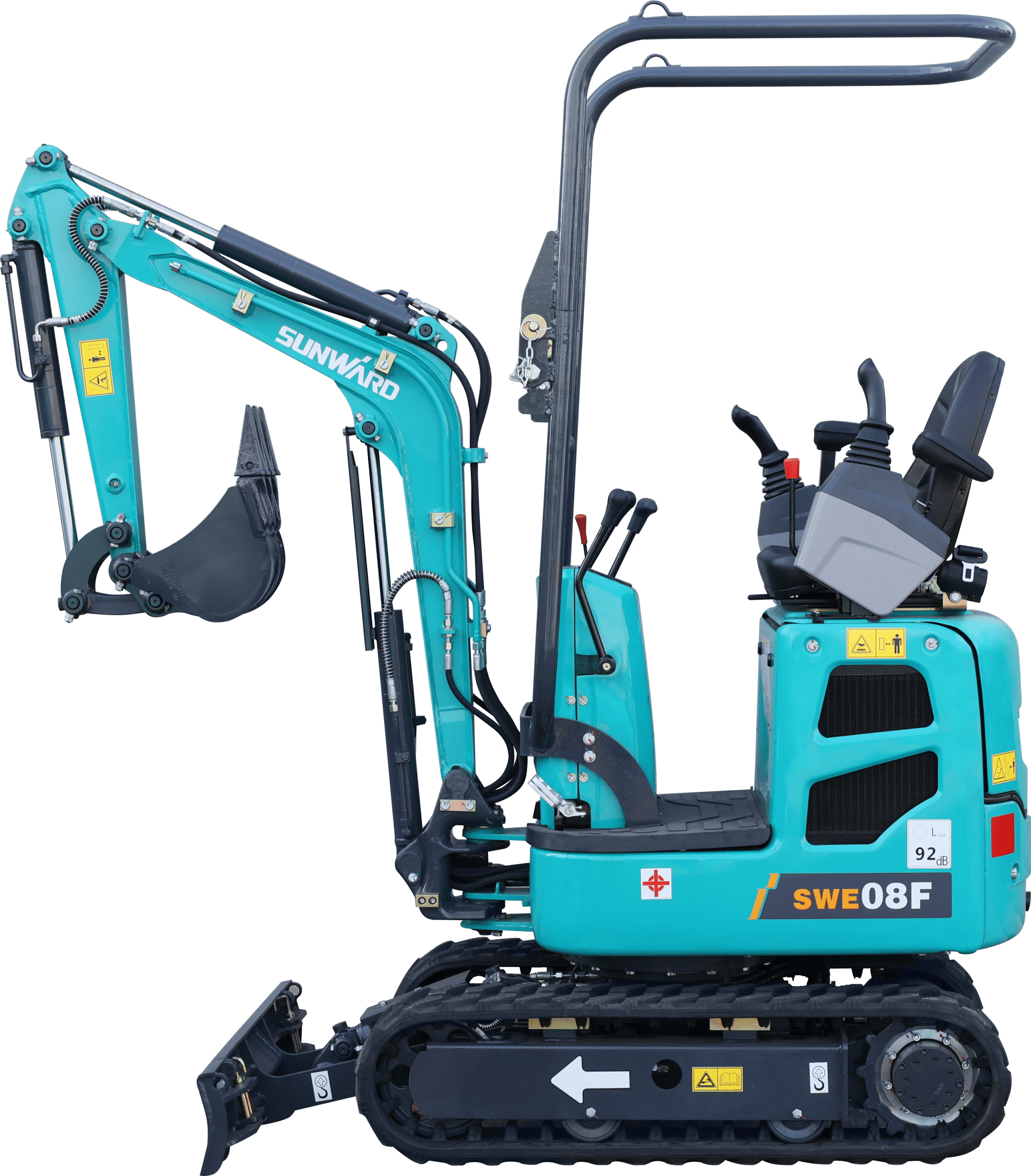

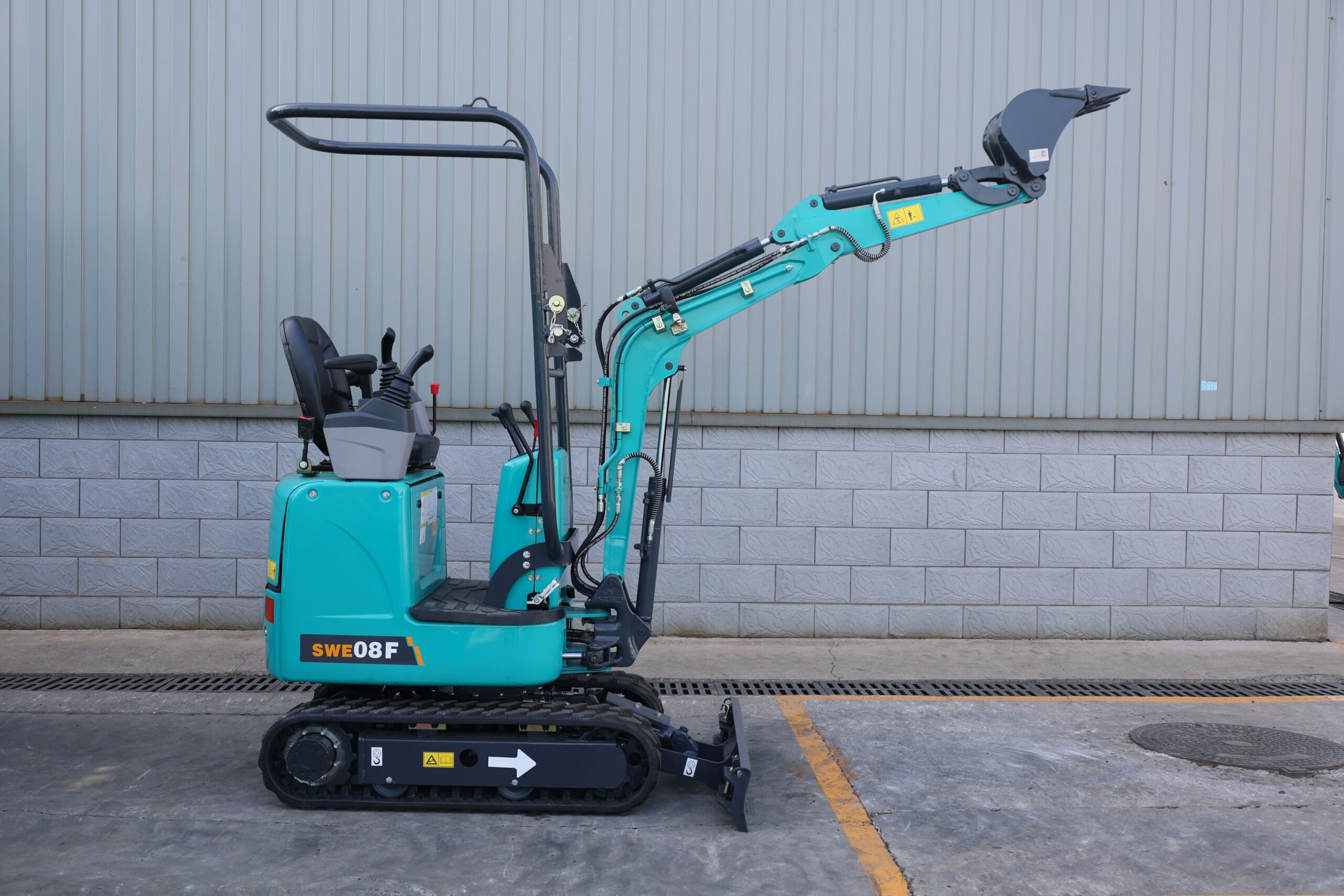

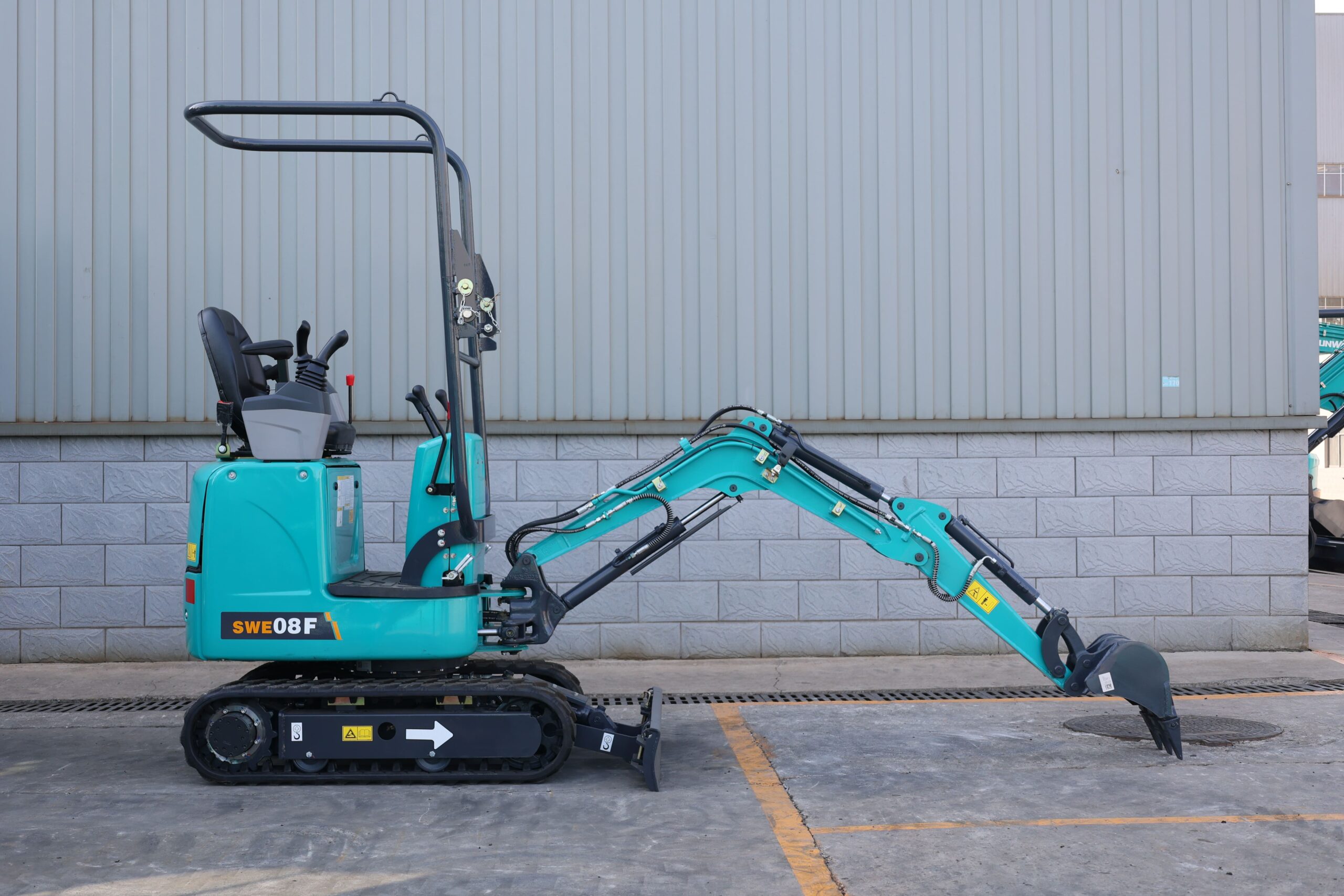

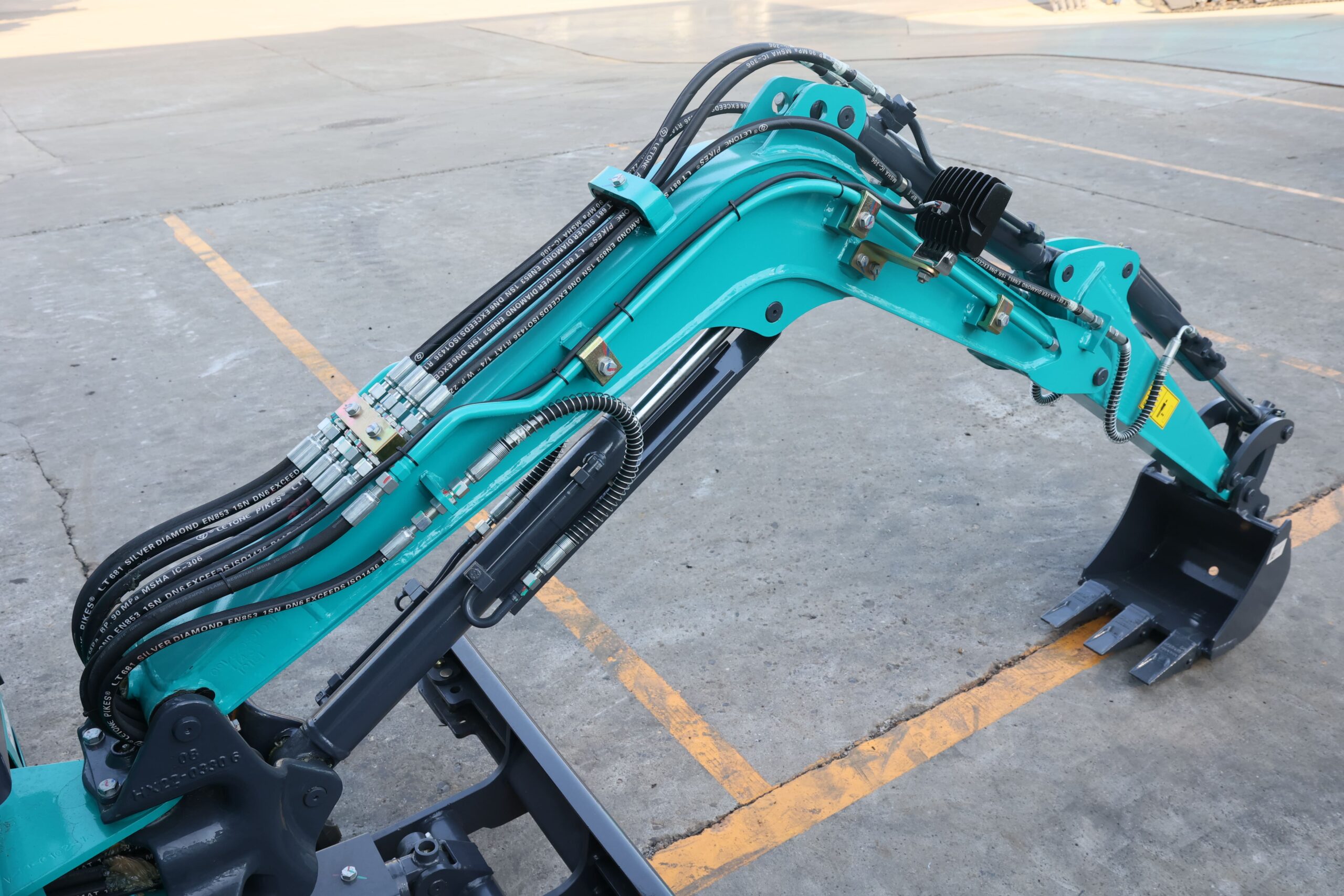

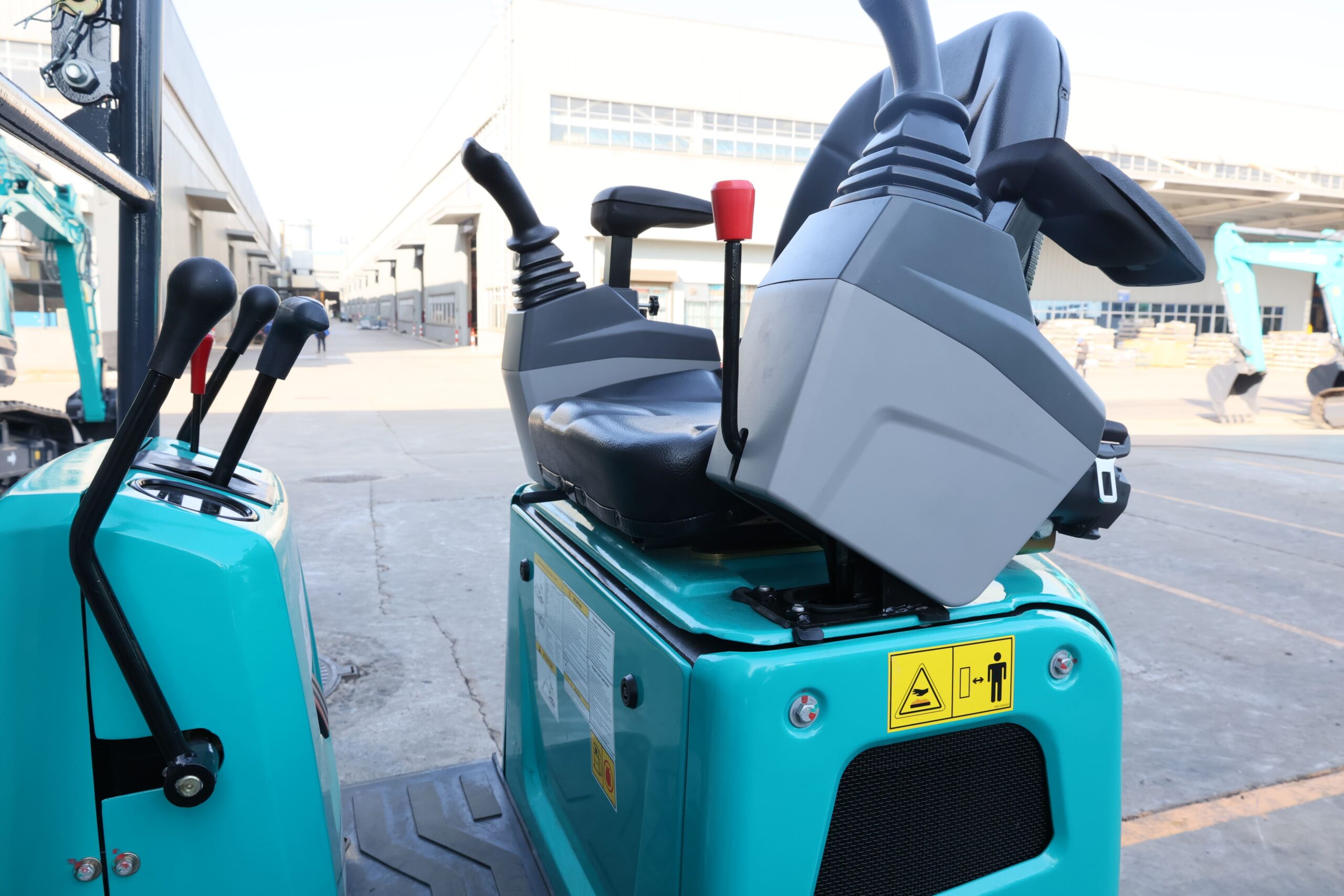

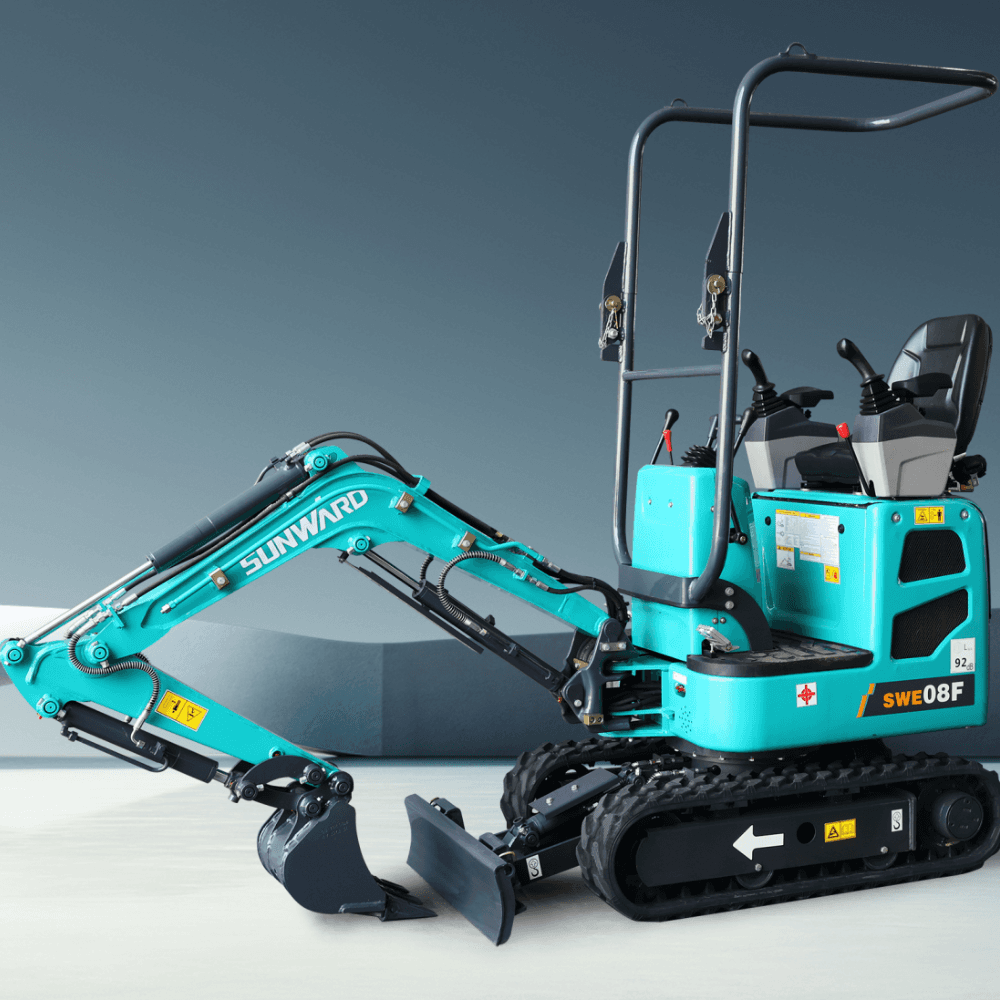

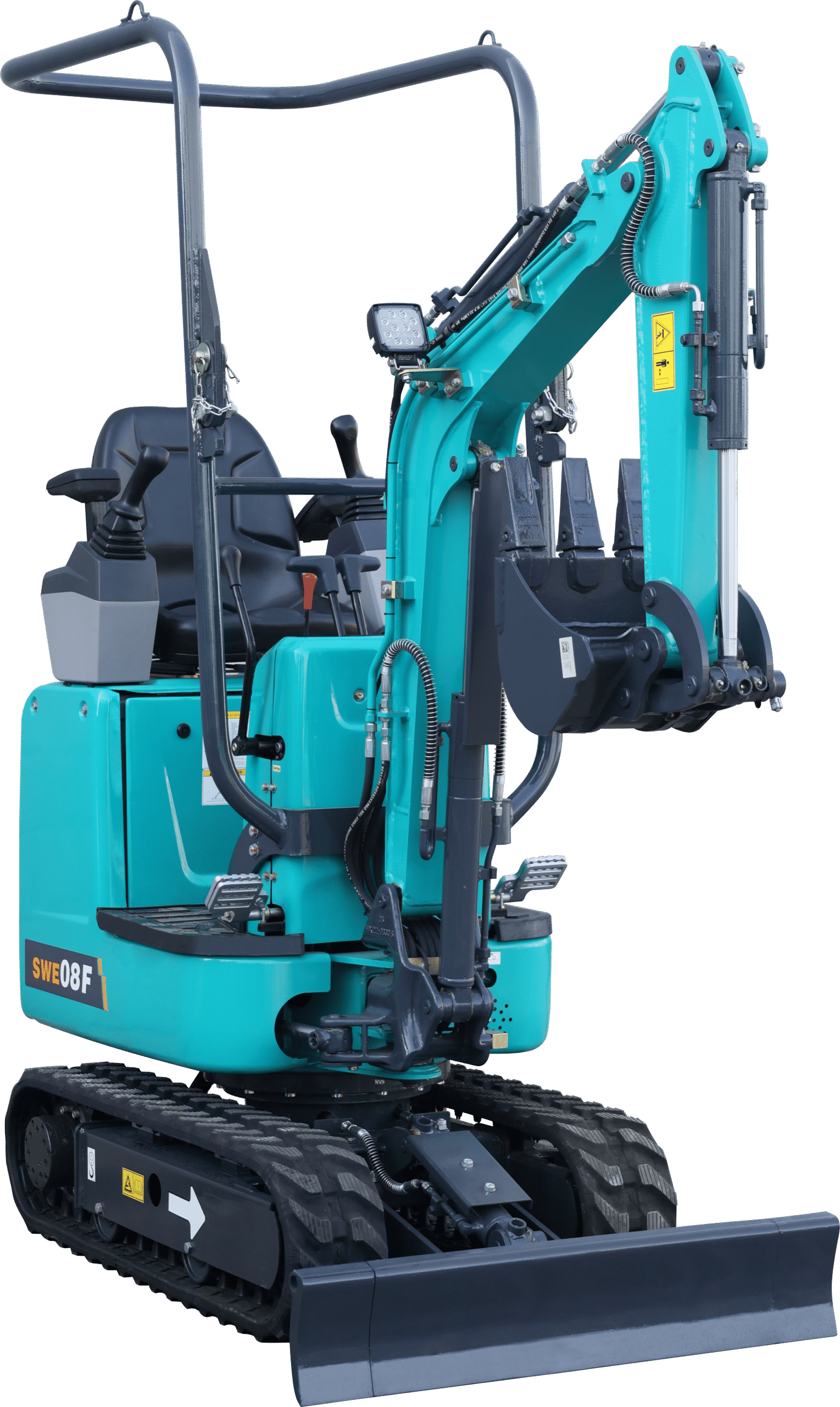

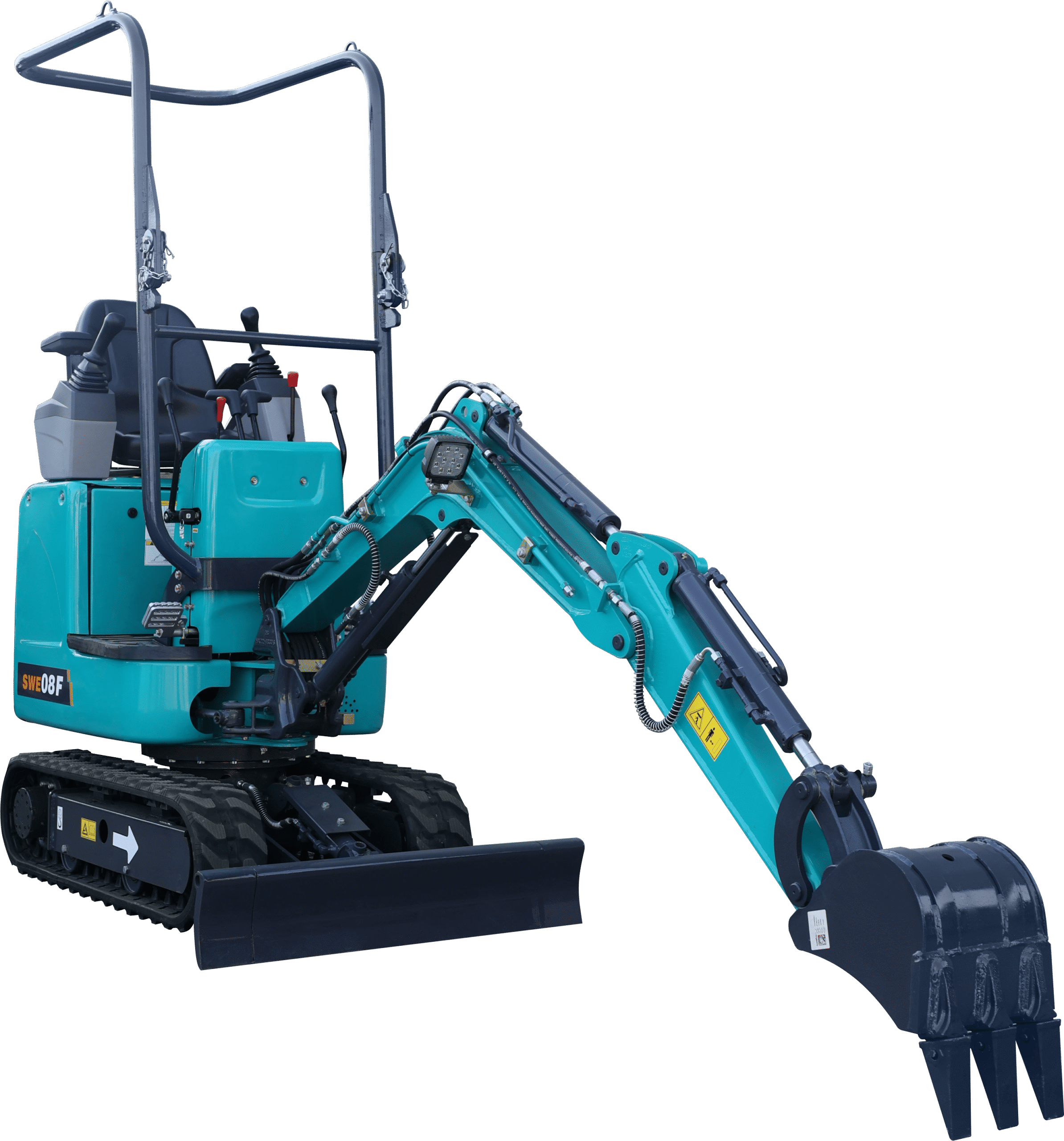

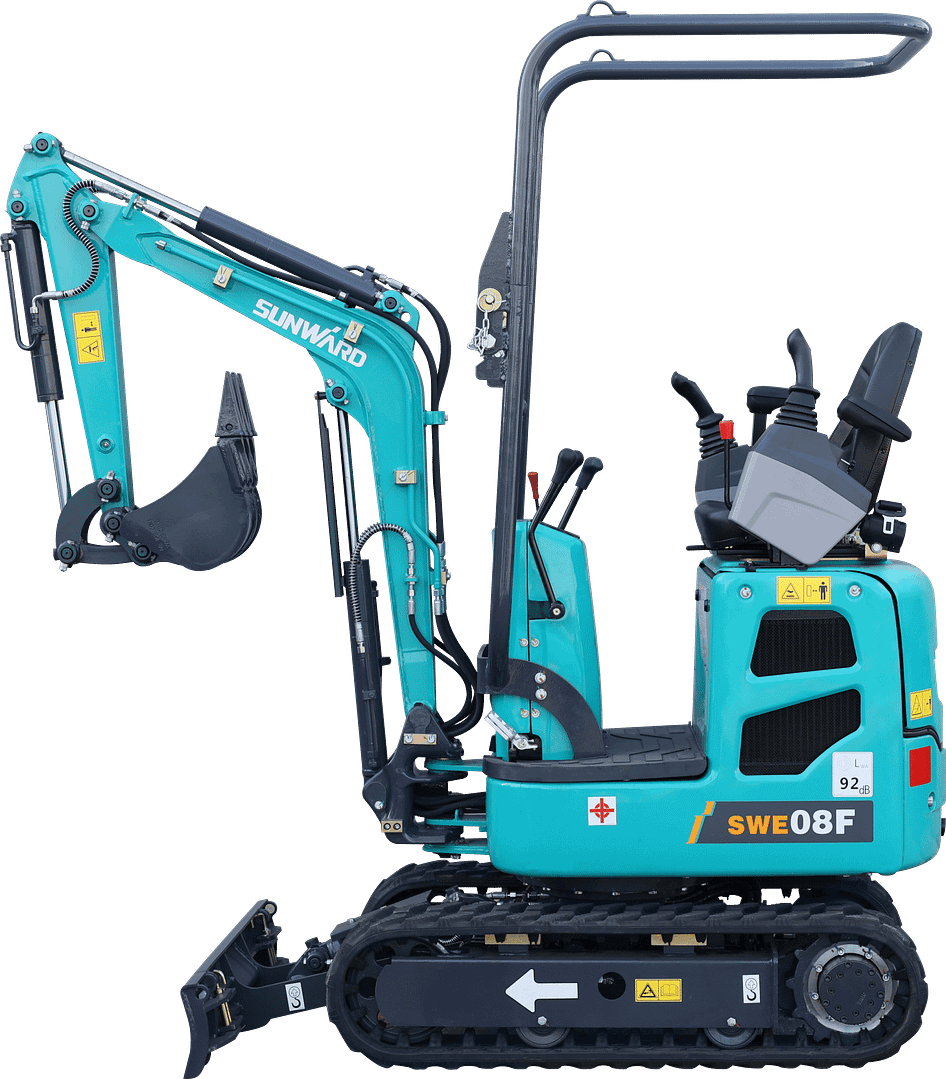

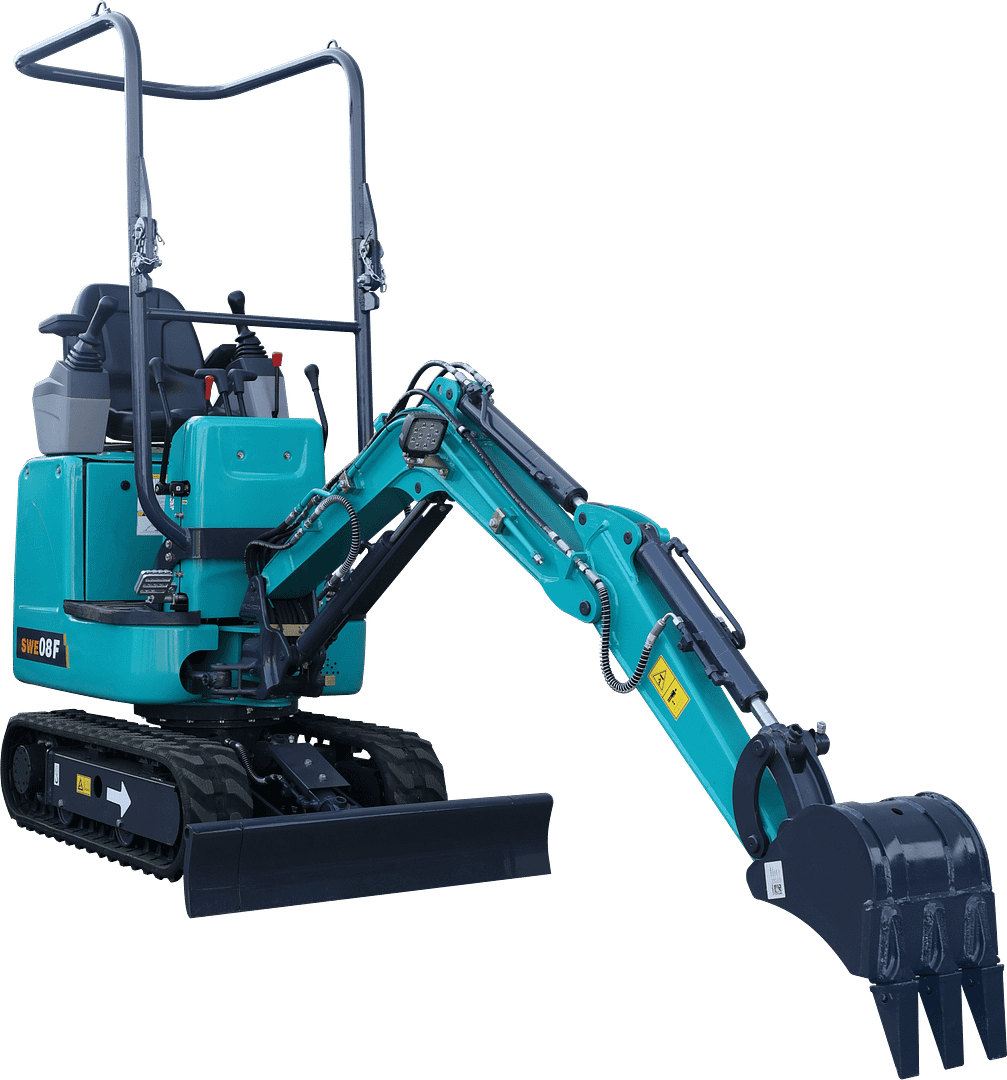

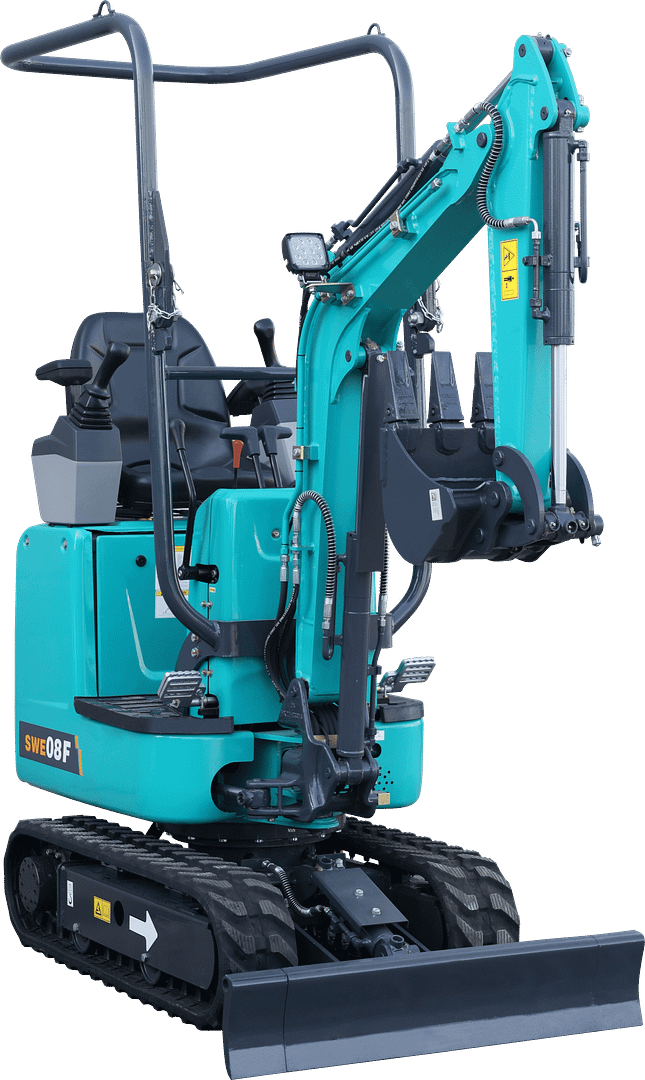

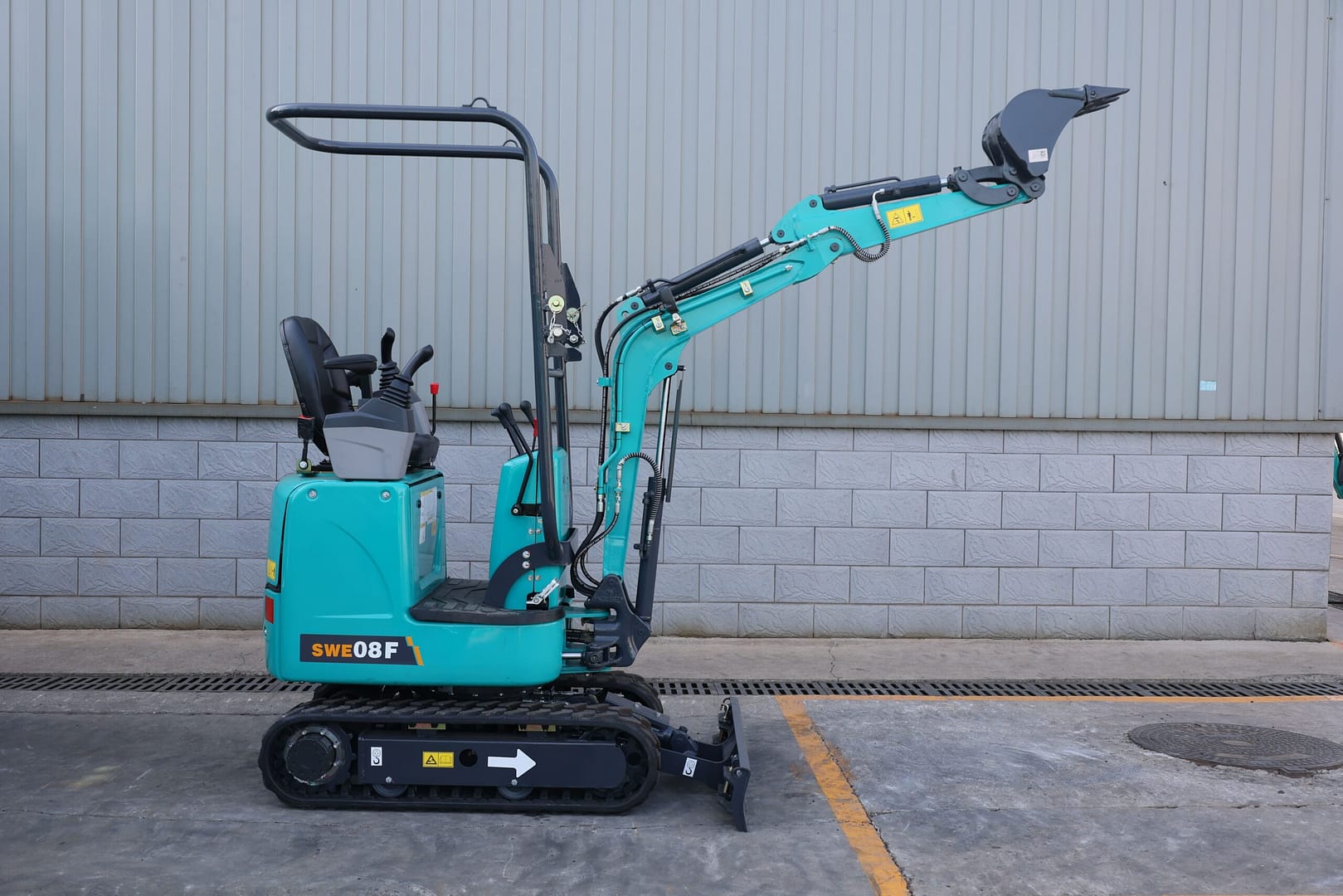

Sunward’s SWE 08F micro excavator, unveiled at INTERMAT 2024, is an evolution of the SWE 08B, enhanced by European customer feedback. Retaining its Yanmar engine, the SWE 08F maintains key specs while offering structural and ergonomic upgrades for better stability and operator comfort. This new model features advanced hydraulic components for improved manoeuvrability and a 16% increase in breaking capability. It epitomizes Sunward’s commitment to innovation, setting a new standard in the micro excavator segment for diverse construction needs.



Operating weight 1 010 kg
Standard bucket capacity 0.022 m³
Shipping length 2 640 mm
Shipping width 750 mm
Height over cabin/canopy 2 275 mm

Model Yanmar 2TNV70-PSU
Emission rating EU Stage V
Displacement 0.57 L
Rated power output 7.2 kW

Type Quantitative gear pump
Displacement 2*9.6 L/min
Hydraulic pressure 16 Mpa

Max. digging depth 1 450 mm
Max. digging reach 2 850 mm
Max. bucket digging force 9.4 kN
Max. arm digging force 5.8 kN
Emission rating

EU Stage V
Operating weight

1 010 kg
Power output

7.2 kW
Max. digging depth

1 450 mm
Width

750 – 1 000 mm

SWE 08F

Unveiling at INTERMAT 2024 in Paris, the Sunward SWE 08F micro excavator is a testament to the brand’s dedication to continuous improvement and customer-focused design. As the latest iteration based on the widely acclaimed SWE 08B, the SWE 08F marks a significant evolution, joining the esteemed ranks of Sunward’s F Series.



Emission rating: EU Stage V
Operating weight: 1 010 kg
Power output: 7.2 kW
Max. digging depth: 1450 mm
Width: 750 – 1 000 mm
