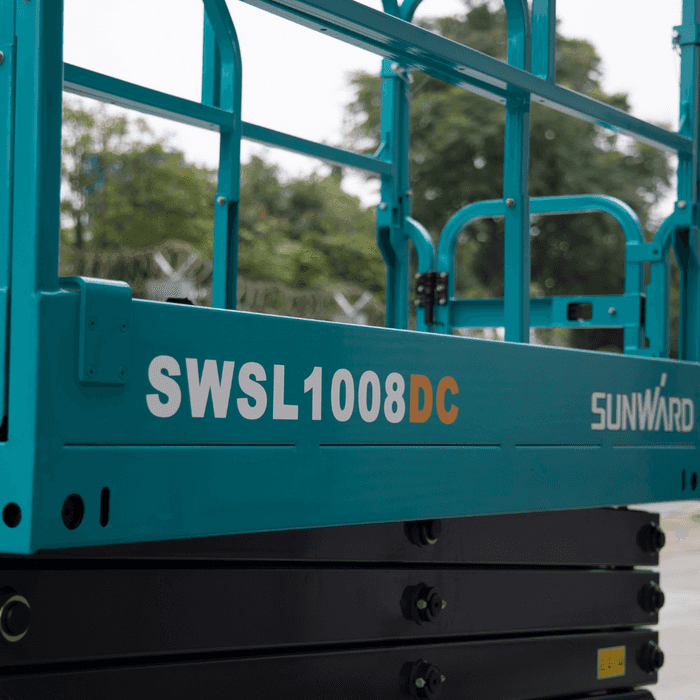

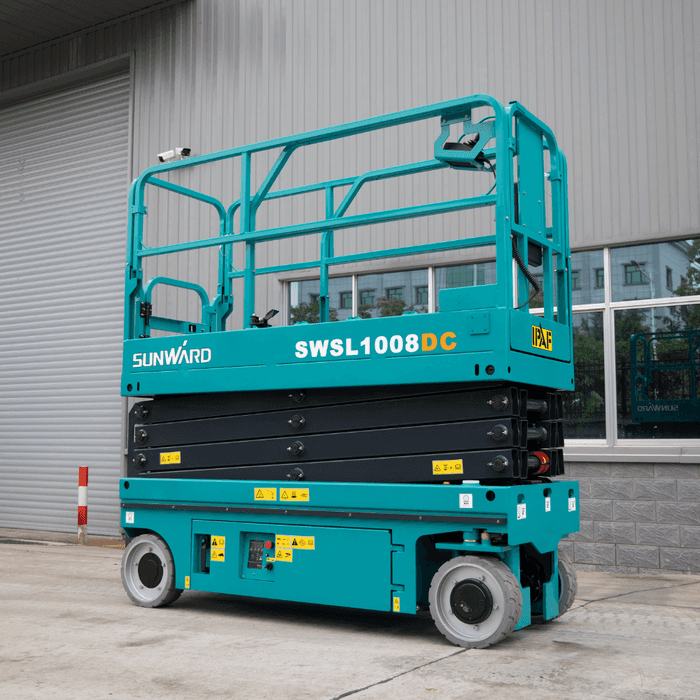

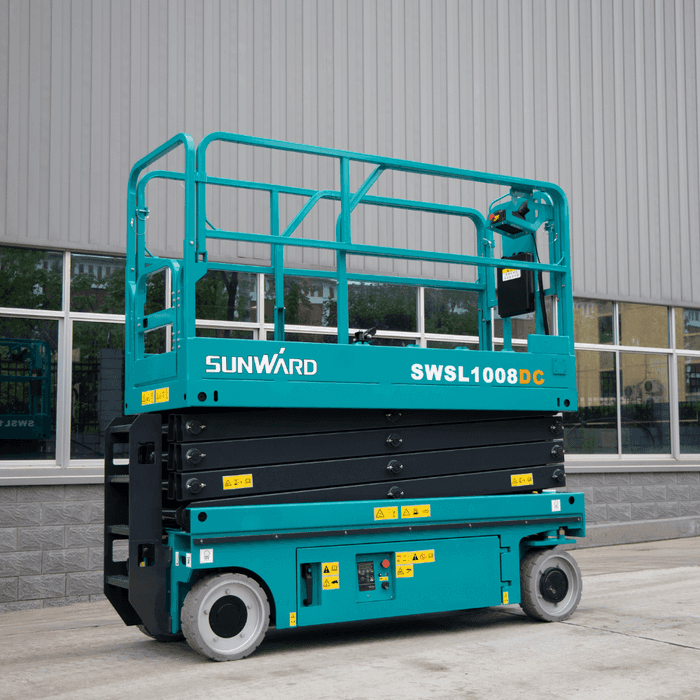

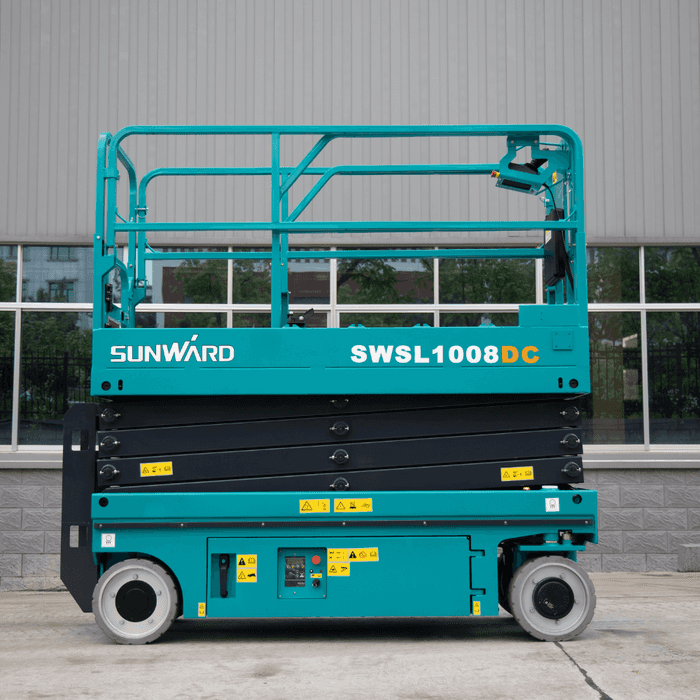

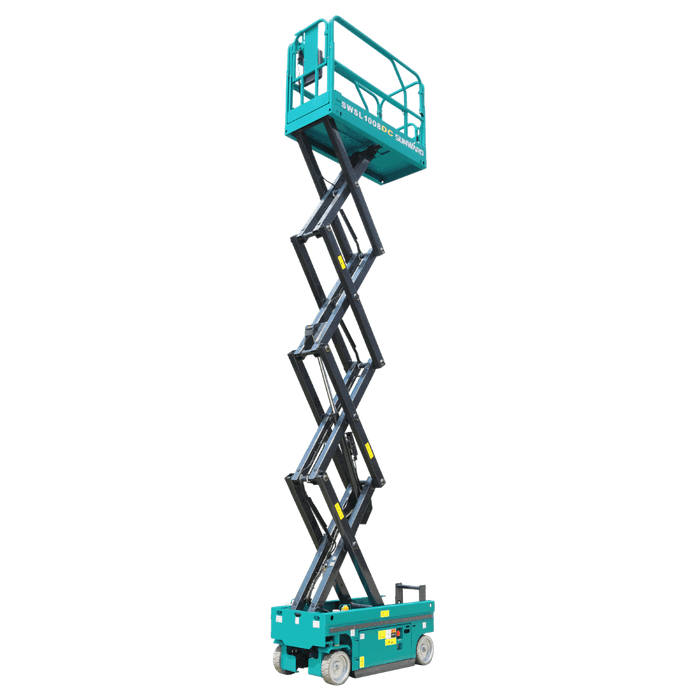

SUNWARD SWSL 1008DC

The Sunward SWSL 1008DC features an electric drive, making it durable and cost-effective. Despite its very compact size, it is very strong. As all the Sunward scissor lifts models, it offers excellent performance, comfortable and safe operation, and it is very nearly maintenance-free. Its size makes it very easy to transport to every jobsite, and, thanks to its zero emissions, it can be used both indoors and outdoor.

Discover all the other advantages of the Sunward SWSL 1008DC.

Propulsion Electric
Driven type Electric
Operating weight 2 100 kg
Brakes Multi-Disc Friction
Max. working Height 10 m
Max. platform height 8 m
Ground clearance – Platform elevated/lowered 110 / 20 mm
Machine height -Lowered, rails raised / rails folded 2.36 /1.86 m
Platform height-Lowered 1.26 m
Overall length 2.46 m
Overall width 0.83 m
Platform length 2.27 m
Platform width 0.81 m
Platform extension length 0.9 m
Drivespeed-Platformelevated/lowered 0.8/4.5 km/h
Max. gradeability 25%
Platform Capacity 230 kg
Extension capacity 113 kg
Max. working angle 1.5°/ 3°
Turning radius – Inside / Outside 0 /2.1 m
Max. working height

10 m

Capacity

230 kg

Machine width

0.83 m

Operating weight

2 100 kg

Propulsion

Electric

Drive type

Electric

SWSL 1008DC

The Sunward SWSL 1008DC features en electric drive, making it durable and cost-effective. Despite its very compact size, it is very strong and offers excellent performance, comfortable and safe operation, and it is very nearly maintenance-free. It can be used both indoors and outdoor.

Max. working height: 10 m
Capacity: 230 kg
Machine width: 0.83 m
Operating weight: 2 100 kg
Propulsion: Electric
Drive type: Electric
